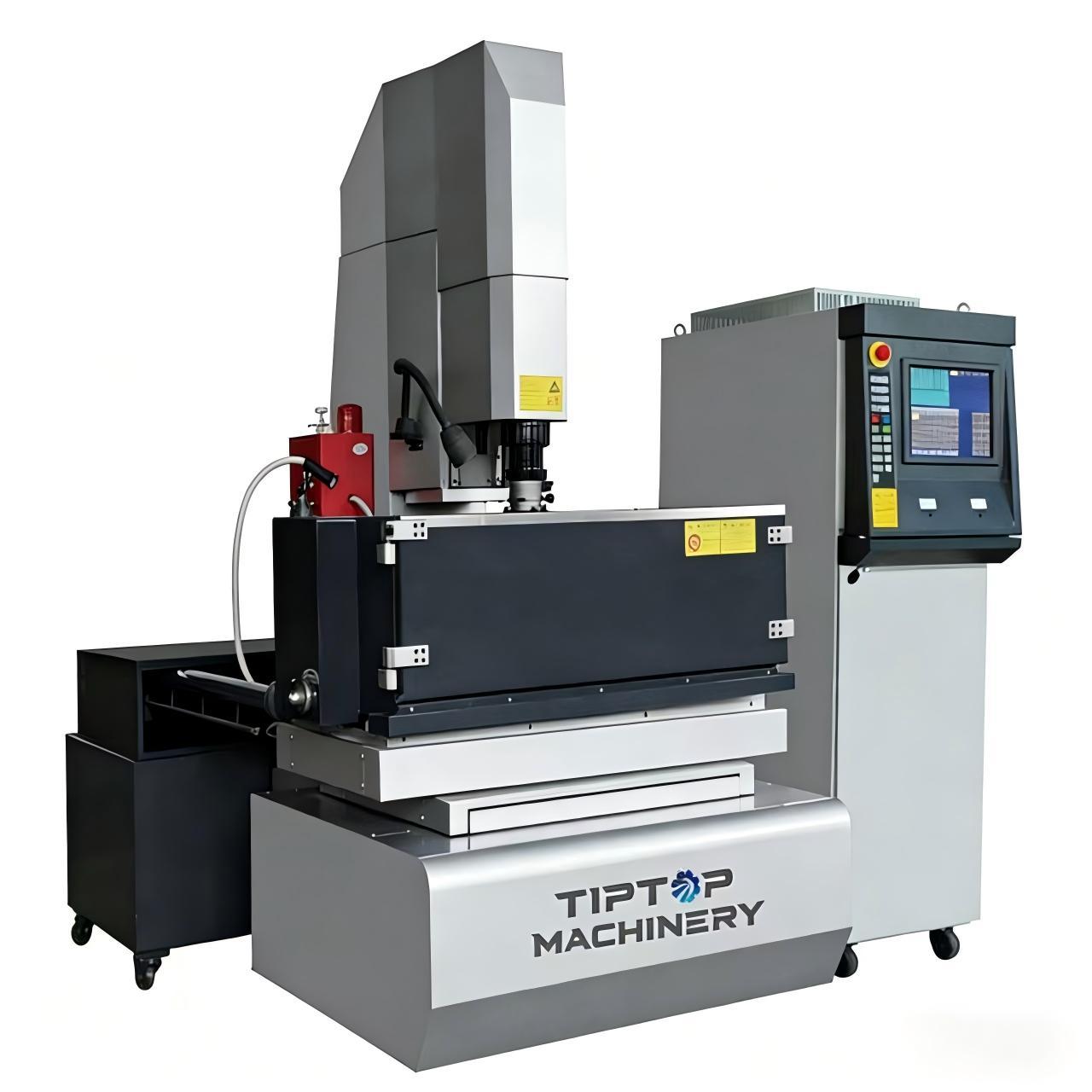

Die Sinker EDM machining uses an electrically charged electrode that is configured to a specific geometry to burn the geometry of the electrode into a metal component. It can machining any conductive materials, include hardened, high-strength or tough metal materials, and conductive ceramics, so it was widely used in tool manufacturing, mould construction and piece-part production.
TipTop Machinery have been developed to prove an ideal mix of speed, accuracy, surface finsh and low electrode consumption.
| Mechanical Specification | SE500C |
| Work table size | 800*500mm |
| Axis travel ( X,Y,Z) | 500*400*300mm |
| Electrode plate to worktable | 350-700mm |
| Max. electrode weight | 150kg |
| Max. workpiece weight | 1800kg |
| Fluid tank capacity | 800L |
| Fluid tank size | 1300*880*540mm |
| Max. fluid level | 400mm |
| Fluid tank opening | manual/automatic |
| Lubrication system | manual |
| Machine body weight | 3000kg |
| Machine body dimension | 2600*26000*2600mm |
| Electrical Parameter | SE500C |
| Operating system | Windows |
| Language display | Chinese/English/Russian |
| Display type | Industrial LCD |
| CNC instruction | standard ISO code |
| Data input method | Keypad input |
| Disk on chip | 32G SSD |
| Axis control | XY axis simultaneous |
| Machining efficiency | 500mm³/min |
| Min. electrode loss | 0.01% |
| Optimal surface roughness | Ra≤0.3μm |
| Max. Available Amperage | 50A |
| Power consumption | 8KVA |
| Power supply | 3phase 380V 50/60Hz |
| Standard Accessories | Optional Accessories | |
| Machine sizing block | 1 set | C axis (System 3R/ Erowa) |
| Hand controller | 2 pcs | Cooling equipment |
| Adjustable chuck | 2 pcs | Electrode library |
| Work lamp | 1 pc | 3R clamping tool |
| Cartridge filter | 4 pcs | Rotary table |
| Tool kit | 1 pc | Permanet magnetic chuck |
| Operation manual | 1 set | Voltage regulator |
