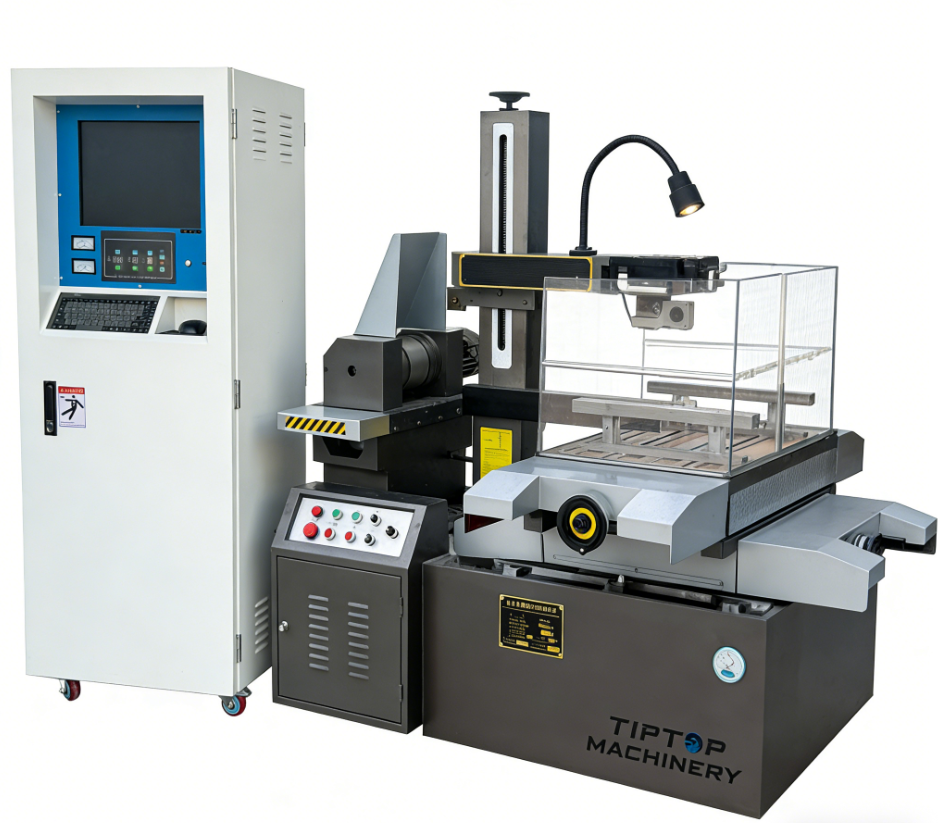

For wire cut EDM machining, a programmed contour is cut into workpiece through molybdenum wire with the help of control software. It is often a cost alternative for workpiece with complex contours. For parts with complex contours that milling machine is difficult to clamp, then Wire Cut EDM is a effective and low-cost solution.
Wire cut EDM can machining any conductive materials, include hardened, high-strength or tough metal materials, and conductive ceramics, so it was widely used in tool manufacturing, mould construction and piece-part production.
TipTop Machinery have been developed to prove an ideal mix of speed, accuracy, surface finsh and low electrode consumption.
| Mechanical Specification | DK7735 |
| Work table size | 470*710mm |
| XY axis travel | 350*450mm |
| UV axis travel | 60*60mm |
| Z axis travel | 360mm |
| Max.workpiece thickness | 400mm |
| Max. workpiece weight | 300kg |
| Machine body weight | 1100kg |
| Machine body floor area | 1250*1200*1400mm |
| Technical Parameter | |
| Max. taper angle / workpiece thickness | ±6°/ ±15°/±30°/80mm |
| Max. machining speed | 200mm²/min |
| Max. wire feeding rate | 1~11.4m/sec ( frenquency adjustable) |
| Positioning accuracy | ±0.03mm |
| Repeated positioning accuracy | ±0.005mm |
| Opitimal machining accuracy | ±0.006mm |
| Opitimal surface roughness | Ra 2.5μm |
| Molybdenum wire diameter | 0.10~0.25mm |
| Power supply | 3 phase/380V/50Hz |
| Power consumption | 3kVA |
| Standard Configuration | |
| Axis linkage | XYUV axis simultaneous |
| Guide rail type | V-shape hardened rail |
| XYUV axis drive | Stepper motor |
| Central lubrication system | manual / automatic |
| Dielectric tank capacity | 40 L |

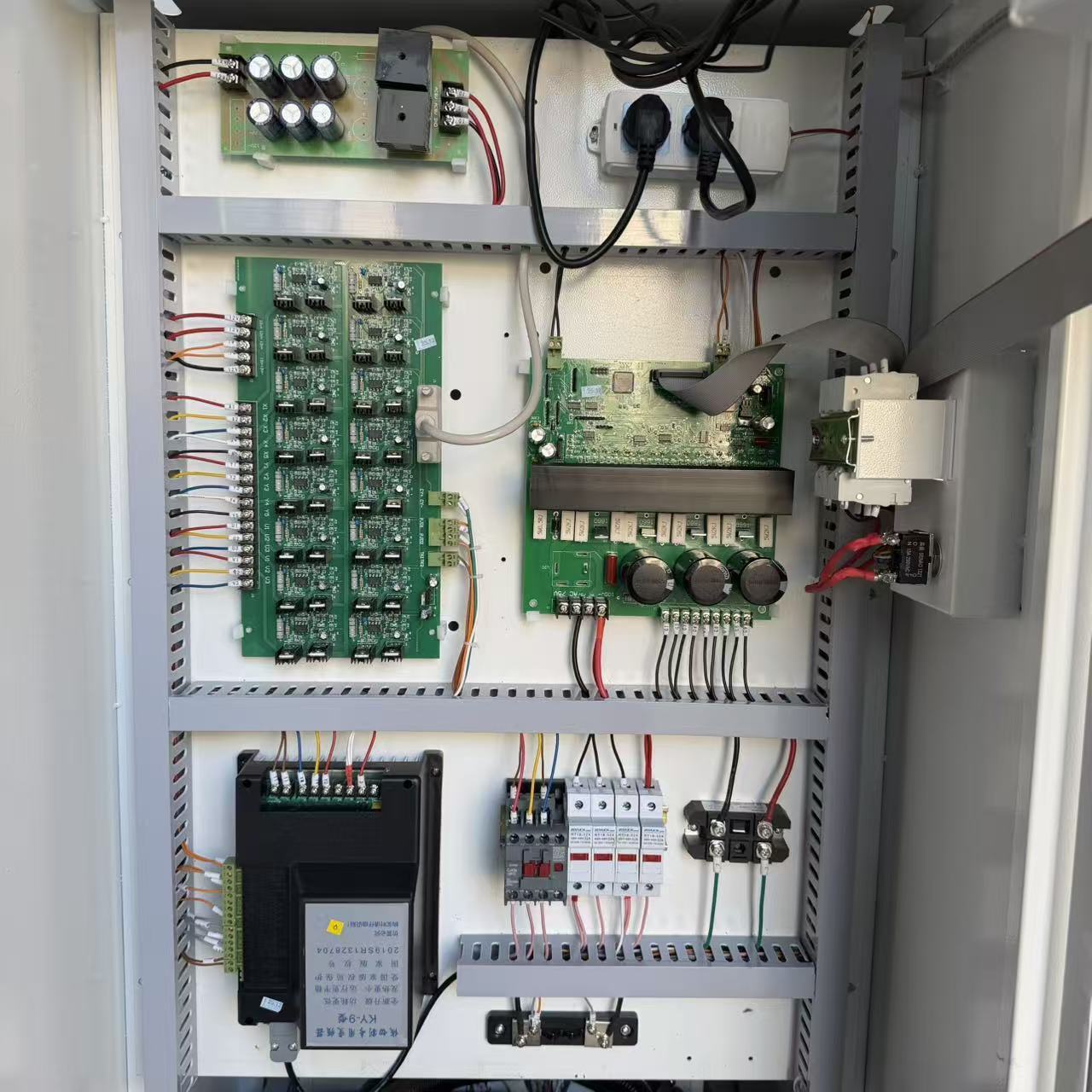

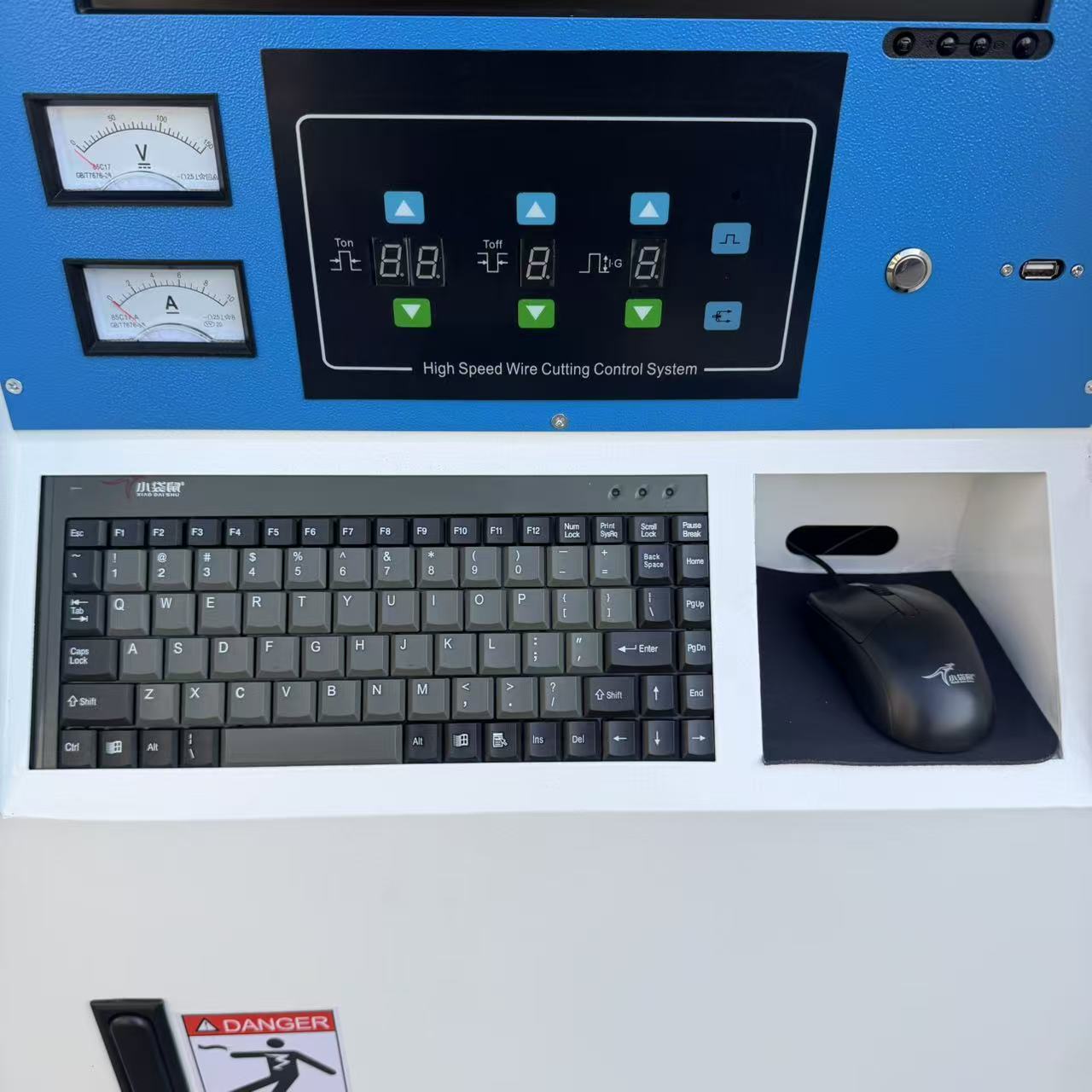

| Controller | Vertical control cabinet |
| Software platform | Window XP |
| Control system | Auto-cut/ Win-cut/X8/HL |
| Language display | Chinese/English/Russian |
| Monitor | 17" LCD |
| Digital readout display | XY axis DRO (5μm) |
| CNC instruction | Standard ISO code |
| Transmission type | USB/LAN |
