For wire cut EDM machining, a programmed contour is cut into workpiece through molybdenum wire with the help of control software. It is often a cost alternative for workpiece with complex contours. For parts with complex contours that milling machine is difficult to clamp, then Wire Cut EDM is a effective and low-cost solution.
Wire cut EDM can machining any conductive materials, include hardened, high-strength or tough metal materials, and conductive ceramics, so it was widely used in tool manufacturing, mould construction and piece-part production.
TipTop Machinery have been developed to prove an ideal mix of speed, accuracy, surface finsh and low electrode consumption.

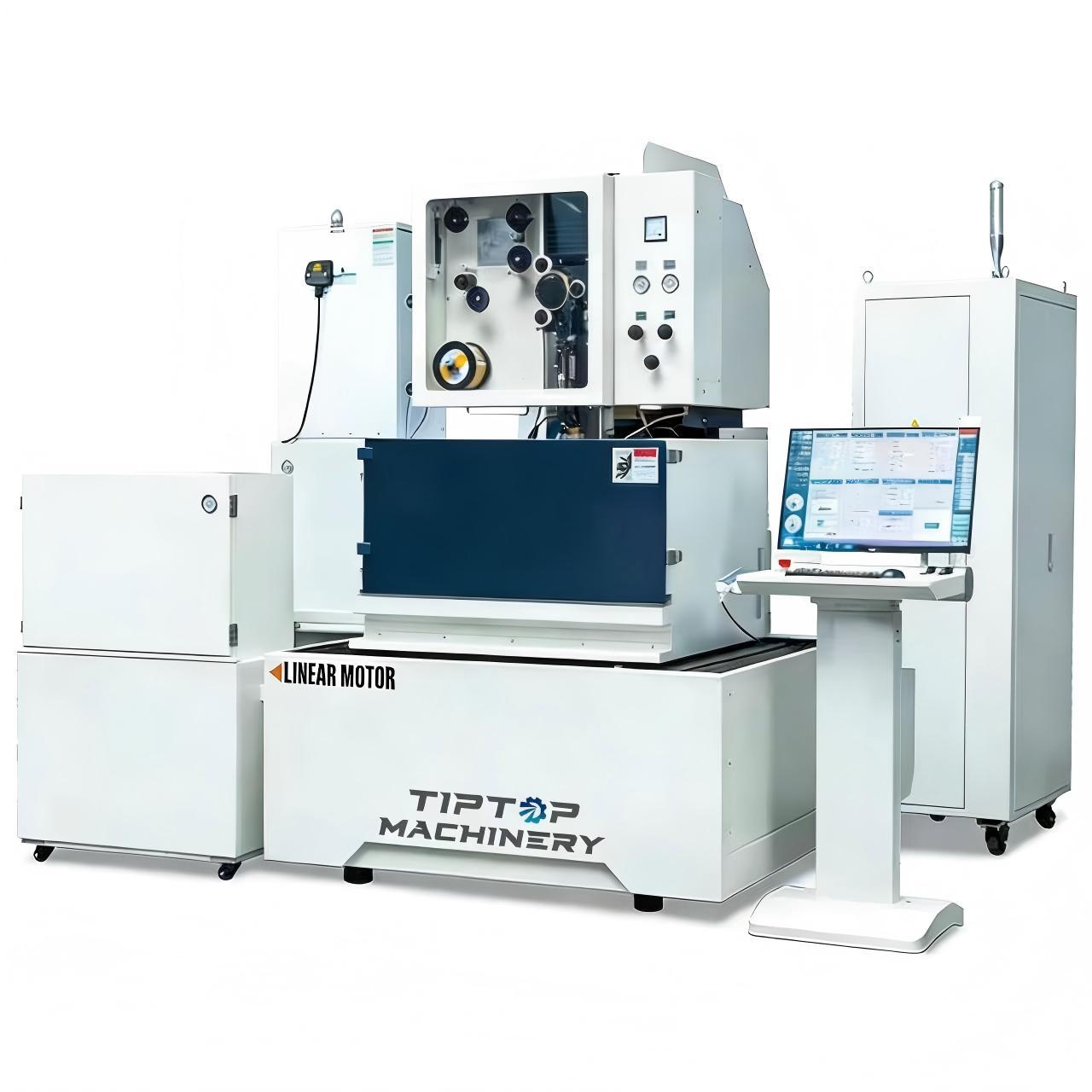

| Mechanical Specification | BWE64 |
| XY axis travel | 600*400mm |
| UV axis travel | 100*100mm |
| Z axis travel | 300mm |
| Max. workpiece dimension | 1030*850*290mm |
| Max.workpiece weight | 600kg |
| Distance from worktable to ground | 900 -950mm |
| Machine body weight | 3800kg |
| Machine body floor area | 3200*2900*2300mm |
| Technical Parameter | |
| Max. taper angle / workpiece thickness | ±15°/80mm (Wide-angle lens necessary) |
| Max. travel speed | 1500mm/min |
| Max. wire feed speed | 18m/min |
| Max. wire spool weight capacity | 10kg |
| Max. wire tension | 0.5～2.4kg |
| Usable brass wire diameter | 0.15~0.30mm |
| Power supply | 3 phase/380V/50Hz |
| Power consumption | 13kVA |
| Standard Configuration | |
| Programable axis | XYZUV 5 axis |
| Drive mode | XY axis linear motor UVZ axis servo motor |
| Dielectric tank capacity | 1050 L |
| Resin tank capacity | 20 L |
| Water temperture control | External chiller unit |
| Max. machining current | 15A |
| Input interface | RJ-45 network, keyboard+mouse |
| Pulse wave control power box | Optimal frequency control system |
| Wire thread mode | Automatic wire thread system |
| Control system | Window 10 |
| Language display | Chinese/English/Russian |
| Display device | 21.5" touch screen |
| Storage | 256 GB SSD |
| CNC instruction | Standard ISO code |
| Transmission type | USB/LAN |
